50 Hz Vs 60 Hz Transformer

In one way, it will work a bit better If the 50 Hz transformer was not over designed, it will be very slightly saturating the core at 50 Hz Applying the same voltage at 60 Hz will result in running the core at lower flux, and the it will be more linear TRANSFORMERSTHE MAGNETIZING CURRENT IN A REAL TRANSFORMER.

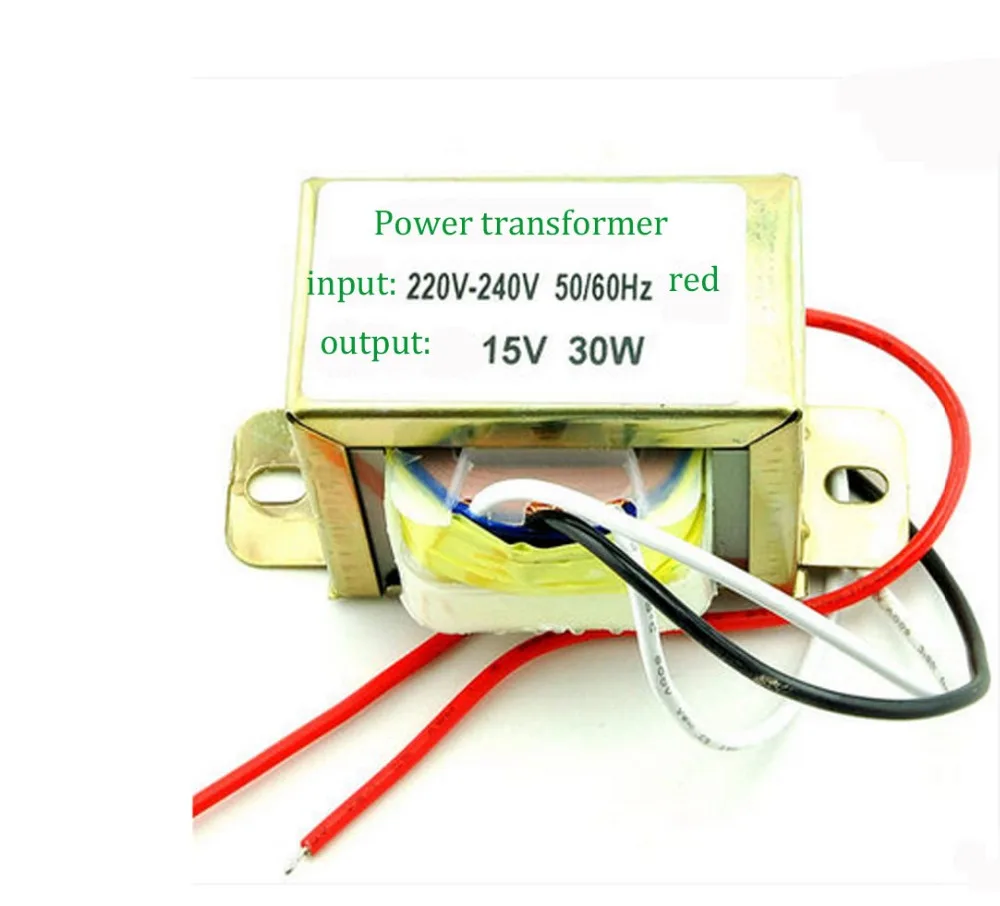

50 hz vs 60 hz transformer. Miniature 50/60 Hz Transformer Series We offer a special line of lowprofile miniature 50/60 Hz transformers, rated up to 50 VA, primarily for use in 115/230 V applications PCB Mount Transformer Models We offer a line of toroidal transformers that come fully encapsulated in a plastic case, designed for throughhole PCB mounting. SOLID STATE CONSTRUCTION TO 1 to 12 KVA Solid state transistorized compact enclosure less than 60DbA at 3ft any single phase input, any single phase output any input frequency, and 50Hz, 60Hz or 400Hz output All of our products are available for purchase, monthly rental or lease to purchase The following are 50 or 60 Hz output, switchable 400Hz output is also available (see below). An AC motor turntable designed for 100V 50Hz needs only a transformer to run from the Australian 230V 50Hz supply An American unit designed for 110V 60Hz needs both a transformer and a pulley swap However that said most Japanese stuff uses an electronic supply, so run on both 50 or 60Hz (as half the country is 50Hz and the other half 60Hz!).

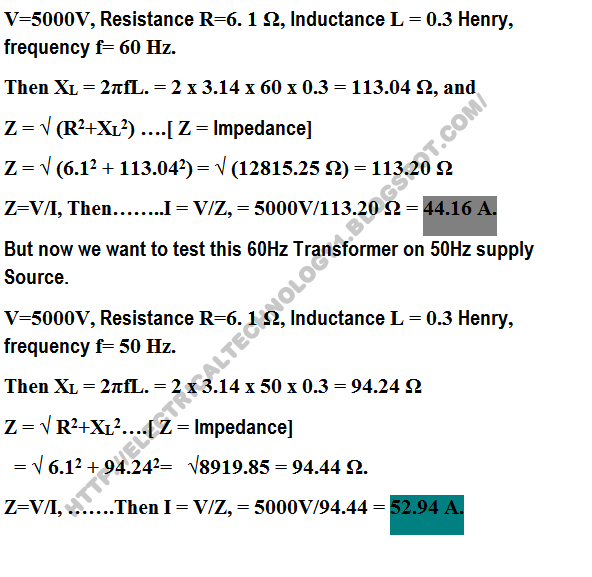

Transformer basics The transformer is manufactured at 50 Hz frequency And if you are using that at 60Hz what will be the impact on the transformer impedance more specifically the transformer reactance?. Summary Transformers Convert Voltage Only 115V AC to 230V AC or 230V AC to 115V AC But they leave frequency unchanged!. Operating a transformer at 50Hz generates % more flux lines than at 60Hz As the number of flux lines approaches the magnetic material’s limit, the heat in both the transformer’s core and its coil wires increases, and under certain circumstances, unpredictably so This can result in a transformer that exceeds safe temperature levels.

Obviously the reverse does not apply because the 60 Hz (designed) transformer assuming it has 15 T flux density for rated voltage will end up at 60/50 x 18 T when connected to the same system voltage but at 50 Hz This will cause many a modern (fully rated) 60 Hz transformer to overheat, due to the saturation of the core. If the world went to 400hz, there would be a huge savings on the size and cost of transformers, and the cost of transmission lines (see update below ) but the difference between 60 and 50 is not great One advantage of 60 cycles per second is it a. Minimum 60 Hz HP = 10/80 = 125 HP A 15 HP, 4 Pole, TEFC, 230/460 60 Hz motor could be utilized Example #2 A customers machine has a load of 13 HP Supply voltage is 415 volts 50 Hz Open Dripproof, 4 Pole motor is adequate Minimum 60 Hz HP =13/ 75 = 173 HP A HP 60 Hz ODP motor could be applied.

Using a 50Hz electric tool on a 60Hz power supply, never harms the transformer or the motor since you draw always less current on 60 Hz The speed of a motor (depending on the type) will be higher on 60 Hz then on 50Hz So dont worry for your welder it will probably produce some % less output!. If it would be a (mechanical) clock which uses 60 Hz as its timebase, sure then at 50 Hz it will be useless A lawnmower might simply run a bit slower at 50 Hz Yes converters exist but the device must be a really special one if you can justify a voltagefrequency converter for it \$\endgroup\$ – Bimpelrekkie Jan 18 '19 at 1623. A 50 Hz fan motor will rotate % faster RPM at 60 Hz, therefore will the fan blades to increase the torque by 40% while the inductance in the induction motor windings increases, the motor becomes overloaded if not the voltage to the motor is increased correspondingly.

A VFD will output any frequency (hZ) between 0 and about 400 50 /60 is not problem The input AC supply is first rectified to DC, so the input frequency really means nothing to the output In fact, you can supply VFD's with DC if you have it The VFD may or may not have the ability to output more voltage than the input. 2 Since excitation current depends on V/f ratio and inductive impedance, you must consider the 60/50 ratio of higher excitation current of running it at 50 Hz when trying to match the 1V 60Hz rating for noload excitation current If you wanted the same RPM, then you need a 1V 60Hz inverter. 50 60 Hz Frequency and 230 115V AC Voltage Power Converters If you’ve read this far, then by now you know equipment designed to uniquely operate in one part of the world may not be compatible in another.

Frequency converters also called a frequency changers, converts 50hz and 60hz to 400 Hz power Either by means of a double conversion Static Frequency Converters or by using a motor generator set called a Rotary Frequency Converter. 50 Hertz means the rotor of a generator turns 50 cycles per second, and that the current changes 50 times per cycle With 50Hz, voltage bounces between positive to negative, and then negative to. All electric machines (transformer or motor) can work at 50Hz or 60Hz but voltage applied bust be in the same ratio of 50/60 Of course power capacity is in the same ratio In terms of pure efficiency, practical is the same, because is proportional to square of current (P=RxI^2), that is the same (copper loss), but at 50 Hz is a little better;.

50hz fixture on 60 hz mains Feed it 277 volts using a stepup transformer, replace the gear, or else just run it asis and leave it underdriven, 60hz fixture on 50 hz mains Use the 277 tap if available on a multitap ballast or else replace the gear Running it as is is a bad idea. RE 60 Hz Transformer in 50 Hz davidbeach (Electrical) Feb 08 1237 Voltage ratio between primary and secondary (at power system frequencies) is only a function of the ratio of the number of windings. 50 Hertz mains, by setting the primary voltage of the transformer to either 110 or 127 or 2 volt (dependent on the mains of the country) and the secondary voltage to 90 volt for the apparatus.

Can you Operate 60 Hz Transformer at 50 Hz & Vice Versa, this for what is the certeria for connect the transformerPlease subscribe my channel to watch more. On the other hand, for incandescent bulbs have lower flicker at 60 HzFor transformers, a major component of AC distribution, you require either more steel or copper at 50 Hz (because of the increased flux density at 50 Hz) as compared to 60 Hz But the steel losses are higher at 60 Hz. For the same makeup of the magnetic cores, the 50Hz voltages will be 17% lower than with a 60Hz system The aim is to maintain standard volts per Hertz to get the same flux density On a 50Hz system the 240V voltage will be the SAME as on a 60Hz system But the next voltage up willl be 380V and not 460V.

Basically a motor or transformer is made by a manufacturer for a specific Hertz or cycles, so either for 50 or for 60 Hz This is mentioned on the nameplate of the equipment Sometimes it mentions both Hertz 50 and 60, but this is only for small (low wattage) motors and small transformers. Iron loss are proportional to frequency. A transformer is designed to be operated on both 50Hz and 60Hz frequency For the Same rating, which one is more efficient when Obliviously!.

If possible, you can use the transformer on 50 Hz if the voltage on 50Hz is lower that the one on 60 Hz in the range of % lessex if 115V at 60Hz, then 95V at 50Hz or 140V at 60Hz then 110V at 50Hz. It leads electric devices much more costly There is no strong technical reason behind 50 Hz or 60 Hz This is not like that these values give best performance among all other available standard values of supply frequencies But these two frequencies give good optimized performance among others. For the 1 volt electronics, the optimum voltage for 1 Volt 60 Hz motors and transformers used on 50 Hz is 100 Volts, but a very common dual rating for coils is 110/1 Volts, 50/60 Hz If you can find a 110 volt transformer you will probably be a little safer with the coils and transformers in the controls.

Assuming a tempered scale with A =440 Hz, a 60 Hz tone is almost exactly halfway between A♯ (54 Hz) and B (6168 Hz) two octaves below Middle C, and a 50 Hz tone is between G (4904 Hz) and G♯ (5193 Hz) two octaves below Middle C, but slightly flatter than the quartertone These notes are within the range of a 4string bass guitar. 50 Hz vs 60 Hz Power Transformers April 15th FactoftheDay M ore iron and/or more turns of wire are required to have the same transformer winding inductive reactance at a lower frequency Ironcore and copperwire both cost money and take physical space, so transformer designers generally use no more of either than necessary to keep power losses reasonable at an intended operating frequency. A VFD will output any frequency (hZ) between 0 and about 400 50 /60 is not problem The input AC supply is first rectified to DC, so the input frequency really means nothing to the output In fact, you can supply VFD's with DC if you have it The VFD may or may not have the ability to output more voltage than the input.

A practical experience My old electric razor was rated 50/60 Hz with a switch to choose between 1101 voltage or /2240V We have 2V 50 Hz in Slovenia When I traveled to the states the razor worked noticeably better I could not believe the difference at first, but I was shaving faster Really. The primary difference between 50 Hz (Hertz) and 60 Hz (Hertz) is, well, 60Hz is % higher in frequency For a generator or induction motor pump (in simple terms) it means 1500/3000 RPM or 1800/3600 RPM (for 60Hz) Lower the frequency will be the iron losses and eddy current losses. Connect a 110 volt 60 Hertz apparatus with a transformer to a 110 Volt or 127 Volt or 2 Volt;.

Obviously the reverse does not apply because the 60 Hz (designed) transformer assuming it has 15 T flux density for rated voltage will end up at 60/50 x 18 T when connected to the same system voltage but at 50 Hz This will cause many a modern (fully rated) 60 Hz transformer to overheat, due to the saturation of the core. 50 Hertz means the rotor of a generator turns 50 cycles per second, and that the current changes 50 times per cycle With 50Hz, voltage bounces between positive to negative, and then negative to. 50 Hz vs 60 Hz Power Transformers Transformers Attached Files Last edited by tubeswell;.

50 Hz vs 60 Hz Power Transformers More iron and/or more turns of wire are required to have the same transformer winding inductive reactance at a 50Hz frequency As a result, power transformers designed for use in US 60Hz applications run very hot, and sometimes extremely hot, if used in 50Hz power mains, even if they have windings to accommodate the higher voltages. However the eddy and hysteresis losses would be higher, as such I would suggest a 510% lower current loading. Yes, a 50 Hz transformer can run on 60 Hz with no ill effects The transformer design does not impose any practical upper limit on how much the supply frequency can exceed the rated frequency, but a supply frequency lower than the rated frequency has the same effect as an overvoltage.

At higher frequencies you can get away with using a smaller transformer (50 Hz unit would be larger than a 60 Hz for the same job) At an extreme, computer type switching power supplies use very high frequencies, and much smaller transformers than linear power supplies. 50Hz vs 60Hz in operating speed The primary difference between 50 Hz (Hertz) and 60 Hz (Hertz) is, well, 60Hz is % higher in frequency For a generator or induction motor pump (in simple terms) it means 1500/3000 RPM or 1800/3600 RPM (for 60Hz). When we operate a 60Hz transformer on 60Hz supply source, the current were 4414 A But when operated a 60Hz transformer on 50Hz supply source, the current were 5294 A The extra current in this case may causes copper loss (P = I2R) and produces heat.

, 0535 PM Building a better world (one tube amp at a time) "I have never had to invoke a formula to fight oscillation in a guitar amp" Enzo s None Diablo Senior Member Join Date Dec 07;. If the rating and parameters of the transformer is same in both cases, a 50Hz transformer is more efficient then 60Hz transformer. 50 Hz and 60 Hz power sources are most often used in international power systems Some countries (regions) commonly use 50Hz power grid while other countries use 60Hz power gridAlternating current (AC) is changing the direction of the current periodicallyCycle is the time of a cyclical change of the currentFrequency is the times of the current changes per second, unit Hertz (Hz)AC current.

NOTE If we compare 50/60Hz with 400Hz then these advantages would be super significant At 100Hz these losses would be significant Advantages of 60Hz over 50Hz 1 The advantage of using higher frequency is the reduction in the size of the electrical components The size of transformers would decrease So the total cost decreases. From 50 Hz to 60 Hz, if you just plug the 50 Hz and 135 kGauss into the equation, and then try the equation with 60 Hz and 50/60 *14 or 1125 kGauss, W/lb will be365 and355, respectively ===>less watts loss on the core at 60Hz. If the voltage is exactly the same, it is safe to use a 50 Hz rated unit on 60 Hz but not the other way That is because at 60 Hz the inductive reactance of the transformers will be % higher so it will draw less current Overall, expect a drop in power output, probably between 15%.

Operating a transformer at 50Hz generates % more flux lines than at 60Hz As the number of flux lines approaches the magnetic material's limit, the heat in both the transformer's core and its coil wires increases, and under certain circumstances, unpredictably so This can result in a transformer that exceeds safe temperature levels. However, theoretically a transformer at 60Hz could deliver more power if % higher Voltage (as compared to 50Hz) is applied This would drive the transformer core magnetic loading to the same level as 50Hz at lower voltage;. The transformer reactance will increase by % as per equation(1) Reactance(X)=2*pi*F*L——–(1) Operation of 50Hz transformer on 60Hz.

Question Why is frequency a concern?Answer Stepdown Transformers convert the voltage but not frequency No Transformer can change the Frequency (Hertz or Cycles of the power)Australia = 50Hz FrequencyAmerica = 60Hz FrequencyFrequency difference may effect some appliances but fortunately is a very small percentage of equipmentEffected equipment includesUSA Microwaves, Hair Trimmers.
